Synthetic Heavy-Duty Diesel Engine Oil for Modern Engines

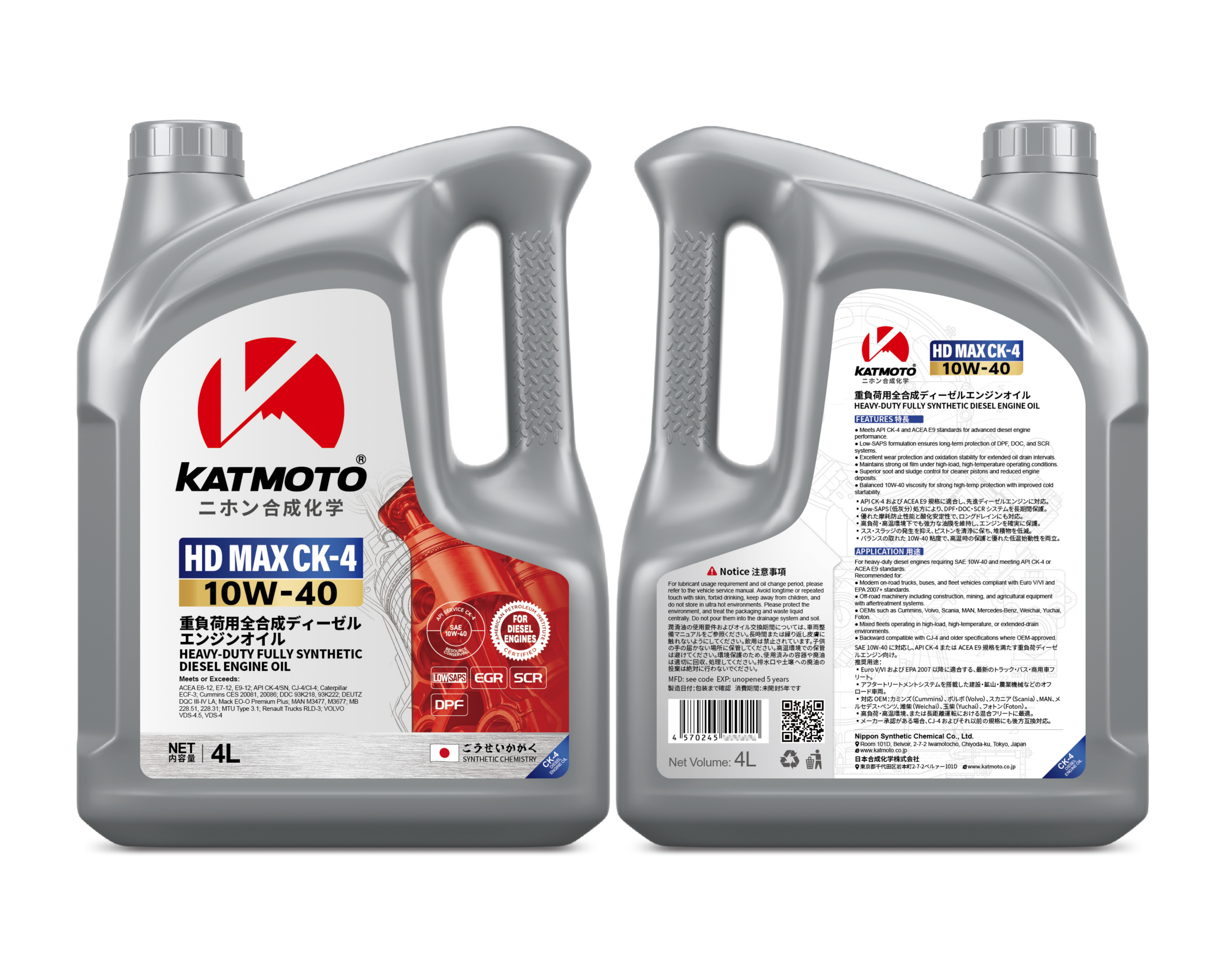

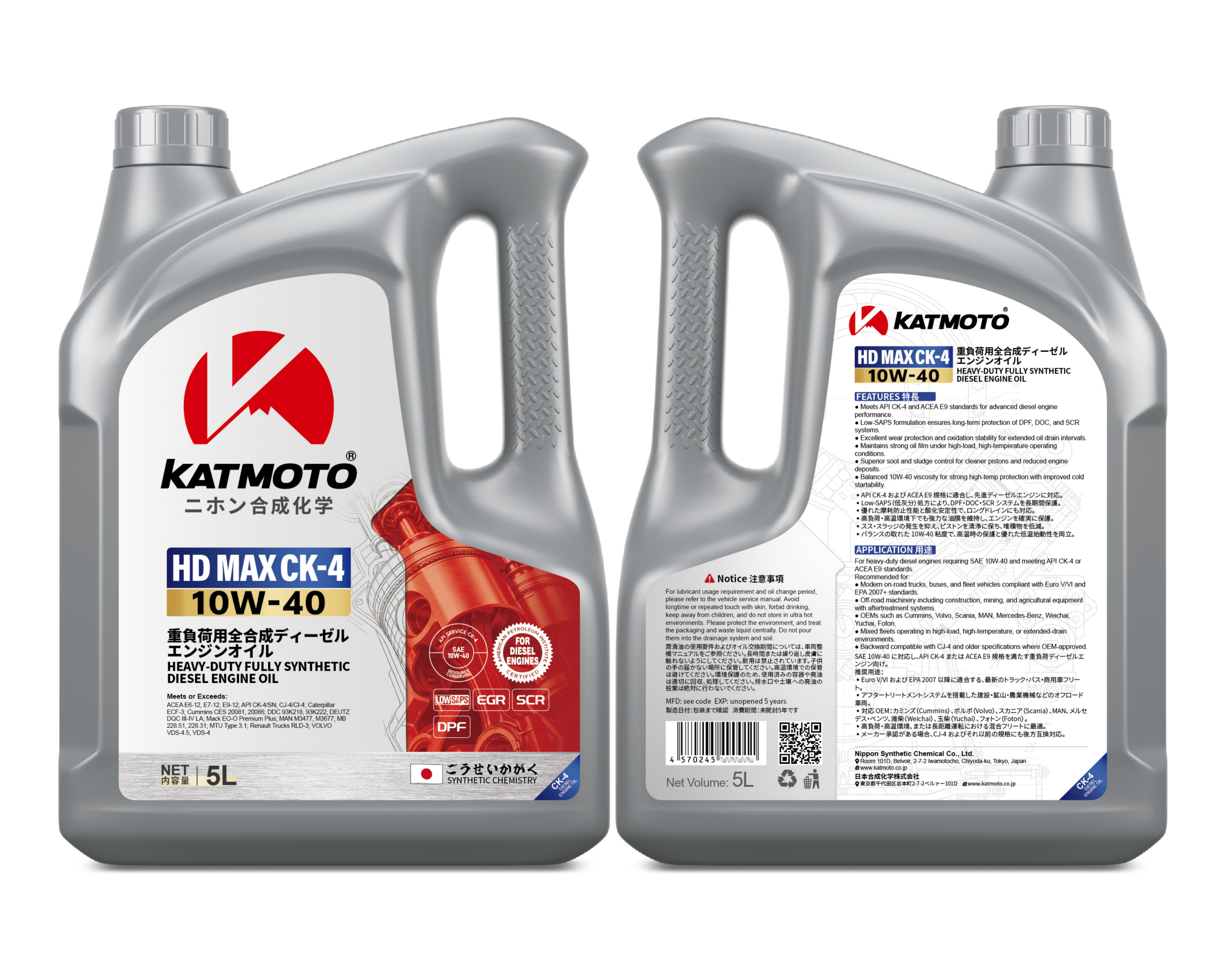

| Product Name | KATMOTO HD MAX CK-4 | SAE Grade | 10W-40 |
| Product Type | Synthetic Diesel Engine Oil | Performance Level | API CK-4/CJ-4 · ACEA E9-type |
| Series Positioning | Commercial / Heavy-Duty Diesel | Application | Modern Diesel (DPF/SCR/EGR) · Long Drain |
Product Description
KATMOTO HD MAX CK-4 10W-40 is a synthetic heavy-duty diesel engine oil meeting API CK-4 for modern low-emission diesel engines with EGR, DPF and SCR after-treatment. Its synthetic formulation offers improved cold-start fluidity and fuel economy over monograde-base oils, with excellent soot dispersancy, wear protection, oxidation stability and deposit control for extended drain intervals.
Key Performance Features
| Improved cold-start
synthetic 10W base provides faster cold-start oil flow and reduced wear. |
Outstanding soot control
advanced dispersancy controls soot thickening and wear in EGR diesels. |
| After-treatment compatible
low-SAPS (ash ≤ 1.0%) protects DPF and SCR systems. |
Oxidation & thermal stability
resists thickening and deposits under high-load operation. |
| Extended drain capability
stable performance supports OEM long drain intervals. |
Backward compatible
suitable for CJ-4 and CI-4 diesel applications. |
Applications & Performance Level
| Applications | Modern on- and off-highway heavy-duty diesel engines with EGR, DPF and SCR after-treatment where SAE 10W-40 API CK-4 oil is specified, including long-haul and severe-duty operation. |
| Specification | API CK-4 / CJ-4 / CI-4 — current heavy-duty diesel category and backward compatibility. ACEA E9-type — mid-SAPS heavy-duty performance for after-treatment-equipped diesels. Cummins CES 20086 · Detroit DFS 93K222 — suitable for Cummins and Detroit modern diesel specifications. Volvo VDS-4.5 · Mack EOS-4.5 — suitable for Volvo and Mack heavy-duty diesel applications. Cat ECF-3 · MB 228.31 · MAN M3575 — suitable for Caterpillar, Mercedes-Benz and MAN diesel specifications. |
| OEM Suitability | Modern Cummins, Detroit, Volvo, Mack, Caterpillar, Mercedes-Benz, MAN and Paccar diesel engines specifying SAE 10W-40 API CK-4. Use only where SAE 10W-40 CK-4 is specified by the manufacturer. |
| Important Notice | Use only where the engine manufacturer specifies SAE 10W-40 and a matching performance level. “Suitable for” does not mean official approval unless an approval license or certificate is separately issued. |
| Property | Test Method | Target Typical Value |
| Appearance / Color | Visual | Clear amber liquid |
| SAE Viscosity Grade | SAE J300 | 10W-40 |
| Density @ 15°C | ASTM D4052 | 0.875 g/cm³ |
| Kinematic Viscosity @ 40°C | ASTM D445 | 95.0 mm²/s |
| Kinematic Viscosity @ 100°C | ASTM D445 | 14.5 mm²/s |
| Viscosity Index | ASTM D2270 | 152 |
| CCS Viscosity @ -25°C | ASTM D5293 | 6,800 mPa·s |
| MRV Viscosity @ -30°C | ASTM D4684 | 29,000 mPa·s |
| HTHS Viscosity @ 150°C | ASTM D4683 | 3.8 mPa·s |
| Pour Point | ASTM D97 | -36°C |
| Flash Point, COC | ASTM D92 | 230°C |
| Total Base Number (TBN) | ASTM D2896 | 10.0 mg KOH/g |
| Sulfated Ash | ASTM D874 | 1.00 % mass |
| Phosphorus | ASTM D5185 | 0.110 % mass |
