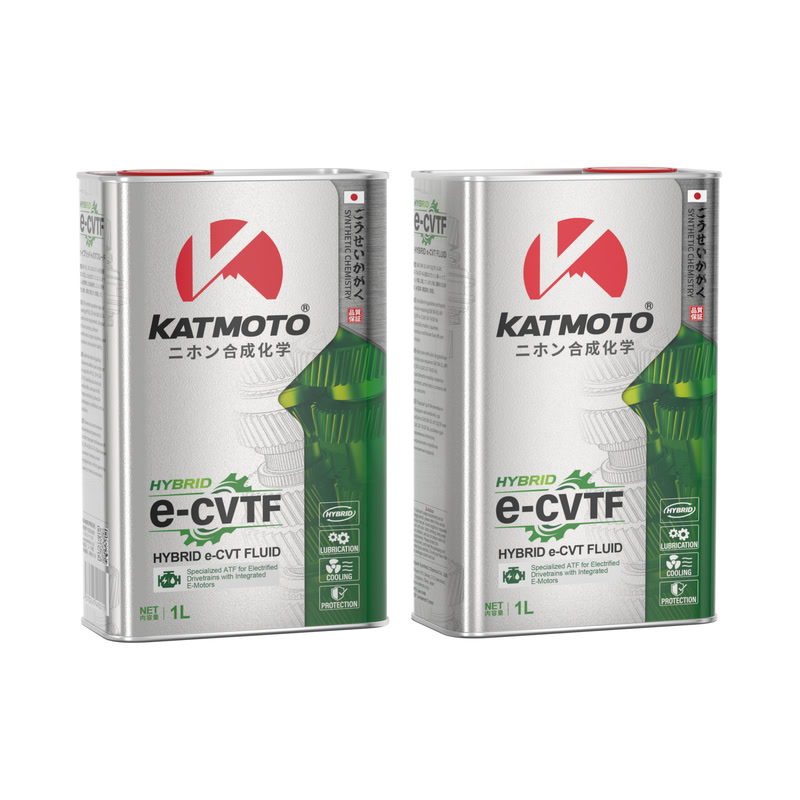

Low-Viscosity Hybrid e-CVT Transmission Fluid
| Product Name | HYBRID e-CVT FLUID | Specification | e-CVT Spec |
| Product Type | Hybrid e-CVT / Electric Transaxle Fluid | Performance Level | Hybrid e-CVT-type |
| Series / Category | Hybrid Transmission Fluid | Application | Toyota Hybrid / Honda e:HEV / Nissan e-POWER |
Product Description
KATMOTO HYBRID e-CVT FLUID is a low-viscosity transmission fluid developed for selected hybrid electric transaxles and e-CVT systems. It supports smooth power transfer, anti-shudder performance, energy efficiency, copper-component protection and stable lubrication for hybrid drive units integrating gears, bearings, electric motors and hydraulic control components.
Key Performance Features
| Low-viscosity design supports hybrid energy efficiency. | Smooth e-CVT power transfer and anti-shudder performance. |
| Protects gears, bearings and copper-containing electric drive components. | Excellent low-temperature fluidity for hybrid start-stop operation. |
| Oxidation and foam control for stable drive-unit performance. | Designed for selected Japanese hybrid electric transaxle systems. |
Applications & Performance Level
| Applications | Selected hybrid electric transaxles and e-CVT systems in Toyota Hybrid, Honda e:HEV, Nissan e-POWER and similar hybrid vehicles where compatible e-CVT/low-viscosity ATF-type fluid is specified. |
| Suitable For | Toyota WS-type hybrid transaxle applications, Honda e:HEV-type and Nissan e-POWER-type applications where fluid compatibility is confirmed. |
| Important Notice | Hybrid e-CVT systems use different fluid requirements by model. Do not use as a universal CVT, DCT, DHT or conventional AT fluid unless the service manual confirms compatibility. |
| Property | Test Method | Target Typical Value |
| Appearance / Color | Visual | Red |
| Density @ 15°C | ASTM D4052 | 0.846 g/cm³ |
| Kinematic Viscosity @ 40°C | ASTM D445 | 27.5 mm²/s |
| Kinematic Viscosity @ 100°C | ASTM D445 | 5.8 mm²/s |
| Viscosity Index | ASTM D2270 | 160 |
| Brookfield Viscosity @ -40°C | ASTM D2983 | 10,000 mPa·s |
| Pour Point | ASTM D97 | -48°C |
| Flash Point, COC | ASTM D92 | 220°C |
| Copper Corrosion | ASTM D130 | 1b |
| Foaming Tendency / Stability | ASTM D892 | 0/0 ml |
Note: These are balanced formulation target values prepared with reference to market-leading products of similar specification and application. Unless separately stated, listed performance levels are suitability references rather than official OEM approvals. Final production values should be confirmed by official KATMOTO TDS and laboratory test report.
